Rail Clips: Precision Engineered for Track Integrity
Industrial-grade rail clips are critical components in modern railway infrastructure, designed to maintain gauge width, absorb dynamic loads, and prevent rail creep. Our clips meet EN 13481, ASTM A125, and UIC standards for global compliance.
Main Series of Rail Clips
| Series | Type | Hardness | Material | Fatigue life | Surface | Standard |
|---|---|---|---|---|---|---|

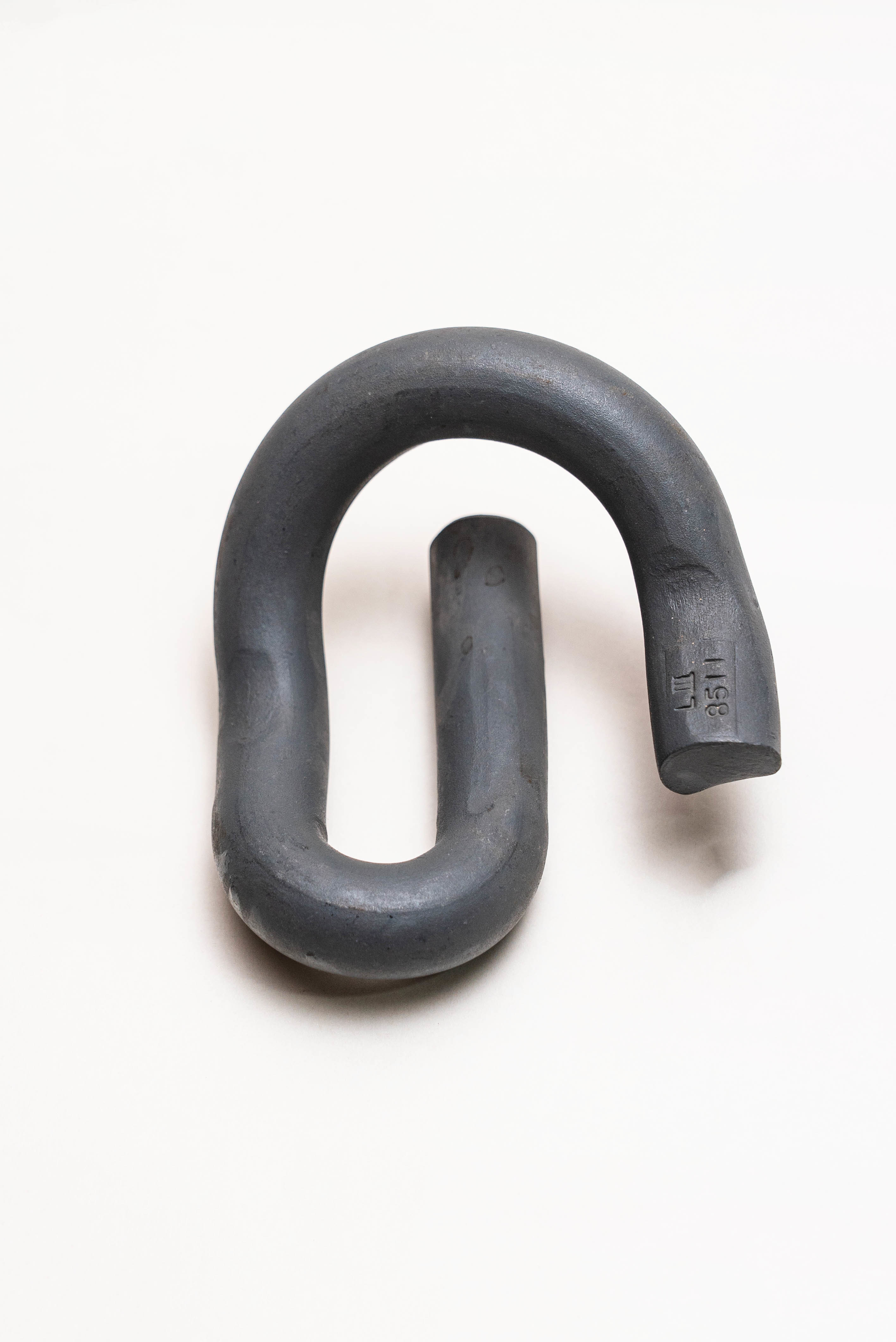

| E rail clip | E1,E2,E3 | 44-48HRC | 60Si2MnA: C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 60Si2CrA: C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 55Si2Mn: C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 38Si7: C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 | For Dia.18 is 3 millions cycles without breaking. For Dia.20 is 5 millions cycles without breaking. | plain (oiled), Oxide black, color painting or according to customer requirement. | DIN17221, BS970, GB/T1222 |
| E1609 | ||||||
| E1809 | ||||||
| E1817 | ||||||
| E2001 | ||||||
| E2006 | ||||||
| E2009 | ||||||
| E2055 | ||||||
| E1056 | ||||||
| Vossloh clip& Forged rail clip | SKL1 | 42-47HRC | ||||
| PR rail clip | PR309 | 44-48HRC | ||||
| PR401 | ||||||
| PR601 | ||||||
| PR85 | ||||||
| We can also manufacture customized rail clips following your drawings or samples! | ||||||
Why Choose Our Rail Clips?
Zero-Deformation Design
Precision-tempered for fatigue resistance under high-frequency vibrations.
Vibration Dampening
Reduces noise by 12dB vs. standard clips (per TÜV Rheinland testing).
Quick-Install System
Compatible with Pandrol®, Vossloh®, and Wood Sleeper Bases.
Lifetime Cost Reduction
30% lower maintenance cycles vs. cast iron alternatives.
Engineering Data Validation
Fatigue Tested: 5 million cycles @ 15–35 kN (UIC 864-4)
Shear Strength: 850–1,100 MPa (ISO 6892-1)
Batch Traceability: Full MTC with Heat Number Documentation
FAQs: Rail Clip Selection
Q: How do clips prevent rail overturning?
*A: Our toe-load optimized design (12–15 kN) secures rails against lateral forces during curves.*
Q: Compatibility with e-clips/nabla clips?
A: Yes – available in SKL 12, SKL 14, Fastclip, and Nabla profiles.
