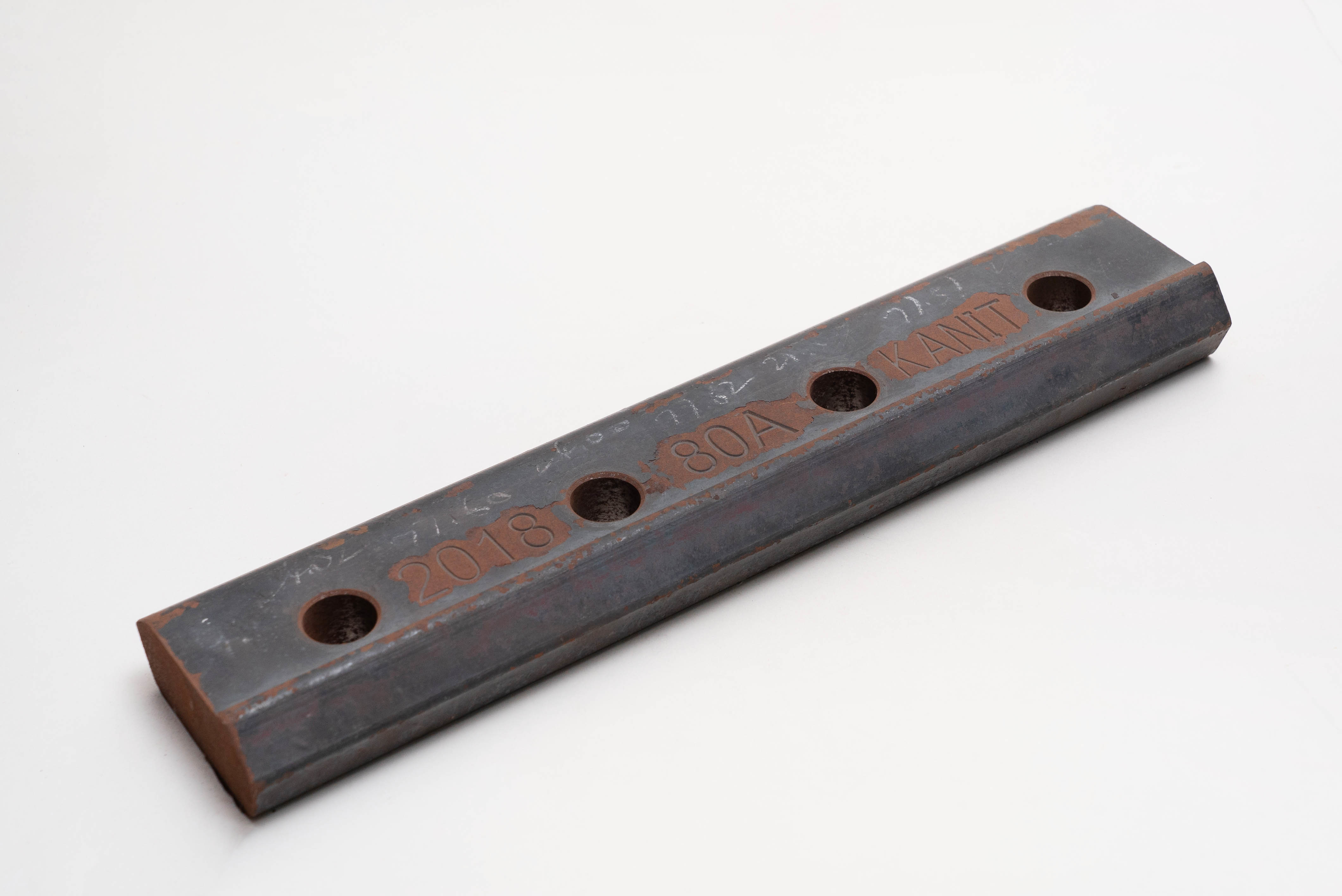

Secure Rail Connections with Heavy-Duty Fishplates
Rail fishplates (joint bars) are mission-critical components that join rail ends while maintaining alignment, distributing loads, and preventing track failure. At Xinda, we manufacture high-performance railway fishplates engineered to exceed global standards for fatigue resistance, shear strength, and long-term reliability – ensuring uninterrupted operations and enhanced track safety.
Applications: Where Precision Rail Joints Matter Most
Our rail joint bars deliver unmatched performance in:
Mainline Track Joints
Rail Renewal & Welding Gap Connections
Bridge Transitions & Expansion Joints
Curves & High-Stress Track Sections
Industrial Sidings & Switching Yards
Temporary Repairs & Emergency Track Maintenance
Key Technical Specifications
| Parameter | Specification | Standards |
|---|---|---|
| Material | Grade 900A/1100 Steel (High-Yield) | ASTM A706, EN 10025 |
| Profile | Standard 4-Hole / 6-Hole; Insulated Options | UIC 864, AREMA Chap. 4 |
| Rail Compatibility | 50kg/m, 60kg/m, 115RE, 136RE | Custom Sizes Available |
| Coating | Hot-Dip Galvanized (100μm), Epoxy-Polymer | ISO 1461, ASTM A123 |
| Hole Tolerance | ±0.2mm CNC-machined | ISO 286-2 |
| Certifications | ISO 9001, IRIS, RINA | PED 2014/68/EU Compliant |
Our Solution:
Optimized Load Transfer: Distributes dynamic forces evenly across rail ends
Fatigue-Resistant Design: Withstands millions of load cycles without failure
Precision Fit: Maintains rail profile alignment (60E1, 115RE, etc.)
Corrosion Defense: HDG or epoxy coatings combat rust and electrolysis
If you have any other products you would like to consult, please feel free to contact us!
