ProductsAt present, the company has the ability to produce 50000 tons of rail buckle accessories annually. The product series includes various specifications of spring bars Gauge baffles, switch special pads, joint clamps for 43kg, 50kg, 60kg steel rails, various export products, etc
-
-
AboutThe company was established in 1994 and is a production enterprise specializing in the research and development, production, and sales of railway line specific accessories
Materials: QT400-15,QT450-10,QT500-7,QT600-3,QT700-2,ZG25,ZG35,ZG45
Model: Customized according to the drawing
Surface: Plain Oiled, Oxygen Black
Produce Type: Sand casting, Hot Forging
Packing Details: fumigation free wooden box
MOQ: 3000 Piece/Pieces
Supply ability: 500 Ton/Tons per Month
Delivery: within 20 working days
Xinda Casting Insert

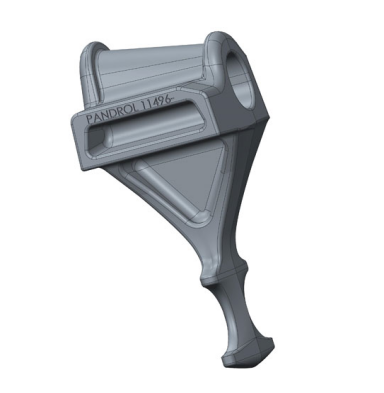

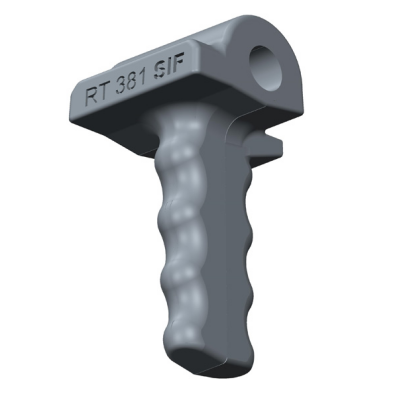

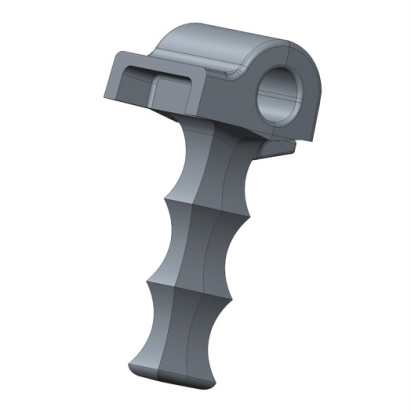

The Xinda rail shoulder is pre-inserted in the concrete tie. There are M.C.I. Insert manufactured from malleable iron and S.G.C.I. Insert manufactured from malleable iron and S.G.C.I. Insert from spheroid graphite iron. We offer two types of iron shoulders. One is Single Stem Iron Insert used in pre-stressed concrete ties and the other is Twin Stem Iron Shoulder used in Bi-Block or Twin Block concrete ties.
Iron Xinda casting insert material technical parameter
Material | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) |
QT400-15(GGG40) | 400 | 250 | 15 |
QT450-10(GGG45) | 450 | 310 | 10 |
QT500-7 (GGG50) | 500 | 320 | 7 |
Material Chemical Composition〔%〕
Material | C | Si | Mn | P | S |
QT400-15 | 3.6-.36 | 3.0-3.2 | 0.5 | 0.07 | 0.02 |
Qt450-10 | 3.4-3.9 | 3.7-3.0 | 0.5 | 0.07 | 0.03 |
QT500-7 | 3.4-3.8 | 2.5-2.9 | 0.6 | 0.08 | 0.025 |
We can produce rail shoulder for different dimentional sizes. We manufacture different types of rail shoulder and provide any type of mechanical properties and chemical compositions. Welcome to choose rail shoulder from Henan Xinda Railway Equipment Co., Ltd.
