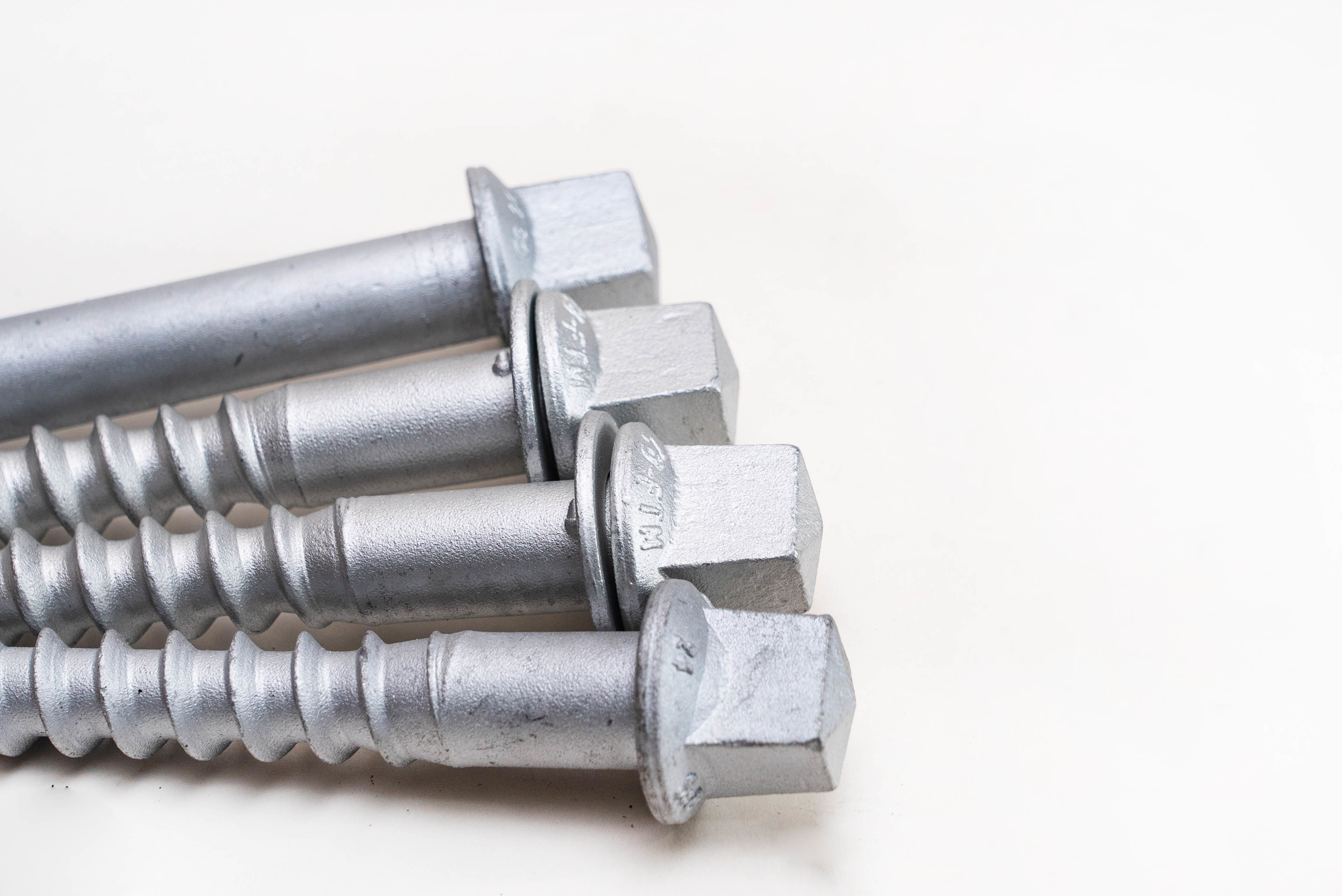

Rail Bolt - Industrial Grade Track Bolting Solutions (ASTM A183 | Hot-Dip Galvanized)
Industry-Standard Strength
Manufactured to ASTM A183 specifications for railroad track joints, delivering ultimate shear strength and vibration resistance.
Corrosion Defense System
Hot-dip galvanized coating (70μm+) ensures 20+ years service life in extreme weather, salt, and chemical exposure.
Precision Torque Control
Hex head design with Grade 8 hardness (HRC 33-39) enables 250+ ft-lb torque accuracy during rail installation.
FAA & AREMA Certified
Compliant with Federal Railroad Administration (FRA) and American Railway Engineering Association standards.
PARAMETER | SPECIFICATION | INDUSTRY KEYWORDS |
|---|---|---|
Material | Carbon Steel AISI 1045/1045k | rail bolt material, steel track bolt |
Grade | Grade 8 (SAE J429) | high strength rail bolt, grade 8 bolt |
Coating | Hot-Dip Galvanized (ASTM A153) | galvanized rail bolt, corrosion resistant |
Tensile Strength | 150,000 PSI min | rail bolt strength, railroad bolt specs |
Diameter Range | 1/2" to 1-1/4" (Customizable) | rail bolt size, railroad bolt dimensions |
Length Range | 3" to 12" (+ Longer on Request) | long rail bolts, track bolt length |
Head Type | Hexagonal (ASME B18.2.1) | hex head rail bolt, track joint bolt |
Nut Compatibility | Heavy Hex Nuts (Included) | rail bolt and nut set, railway fasteners |
Engineered for Critical Rail Connections
Our industrial rail bolts exceed AREMA Chapter 30 requirements for rail joint bolting systems , featuring rolled threads that increase fatigue resistance by 30% compared to cut threads. The hot-dip galvanized finish provides sacrificial anode protection, preventing rust creep at bolt-nut interfaces – crucial for coastal and de-icing chemical environments.
Precision Installation Advantage
The chamfered end design enables 50% faster track bolt installation with automatic positioning tools. Each bolt undergoes magnetic particle inspection (MPI) to eliminate subsurface defects, ensuring consistent performance under dynamic loading.
Sustainability Compliance
RoHS-compliant manufacturing with 98% recycled steel content. Zinc coating meets EPA toxicity standards for groundwater protection.
If you have any needs, please feel free to consult us!
