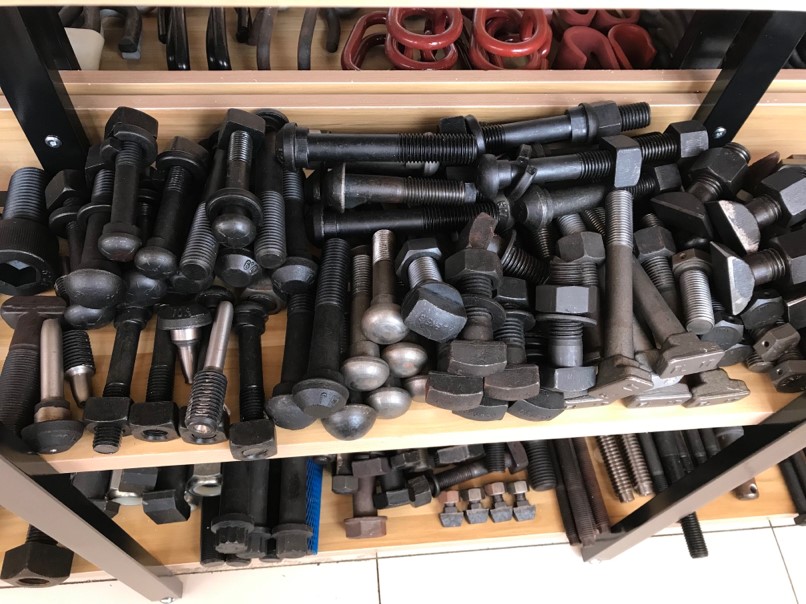

High strength Fish Bolt For Railway Track
Henan Xinda Railway Equipment Co.,Ltd produce various kinds of Fish Bolt(also called track bolt, rail bolt, fish plate bolt, rail joint bolt) and clip bolt for concrete sleeper rails and crane rails. Various bolt head are as round or oval head bolt, square head bolt, hex head bolt, clamp bolt, inserted bolt and so on or according to clients' requirement. The diameter is 16mm to 24mm, its length varies from 125mm to 300mm and the grade is 8.8/10.9/12.9.
We customized high strength bolts to fix steel rails.
High strength fish bolts have several grades such as 8.8, 9.8, 10.9 and 12.9.
High strength Fish Bolts are mostly used for the connection of bridge or steel rail.
Material: 45#, 40Cr, 42CrMo and 35CrMo
Grade: 8.8, 9.8, 10.9, 12.9
Surface: Plain, Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating
MOQ: 5000PCS
Sample: Free
Packing: Double layer woven bags with wooden pallets or according to clients' requirement
Supply ability: 3500 Ton/Tons per Month
Delivery: within 20 working days
Technical Parameter of High strength Fish Bolt For Railway Track
Diameter | Length | Weight (Kg) |
1/2" | 1-3/4" | 0.097 |
1/2" | 2" | 0.10 |
1/2" | 2-1/4 | 0.112 |
5/8 | 2-1/2 | 0.183 |
3/4 | 3 | 0.328 |
3/4 | 3-1/2 | 0.339 |
3/4 | 4 | 0.356 |
7/8 | 4-1/2 | 0.559 |
7/8 | 5 | 0.593 |
1 | 5 | 0.8 |
1 | 5-1/2 | 0.839 |
1 | 6 | 0.879 |
1-1/16 | 6 | 0.995 |
1-1/8 | 6-1/2 | 1.186 |
Physical properties of High strength Fish Bolt
Tensile Strength | Yield Strength | Elongation |
800Mpa | 640Mpa | 12% |
