Rail bolts also called track bolts, are used to fasten steel rail ends together at a joint. The sizes of track bolts are varying with the requirements of the section of rail. The proper diameter and length of the track bolt can be determined by checking the applicable railway standard.
According to related rail standards, each joint needs to be bolted with at least two track bolts in each rail tightened to approximately 400 foot-pounds of torque which develops between 25,000, and 30, 000 pounds of tension in the bolts.
Types of Rail Bolt
- By the force, there are the common type and the reamed-hole type. The rail bolt needs to suit the reamed hole that needs to custom the dimension of rail bolt. If you are looking for the track bolt manufacturer, please contact the Xinda.
- By the shape of the head, there is hexagon bolt, cheese bolt, and coach bolt, etc.

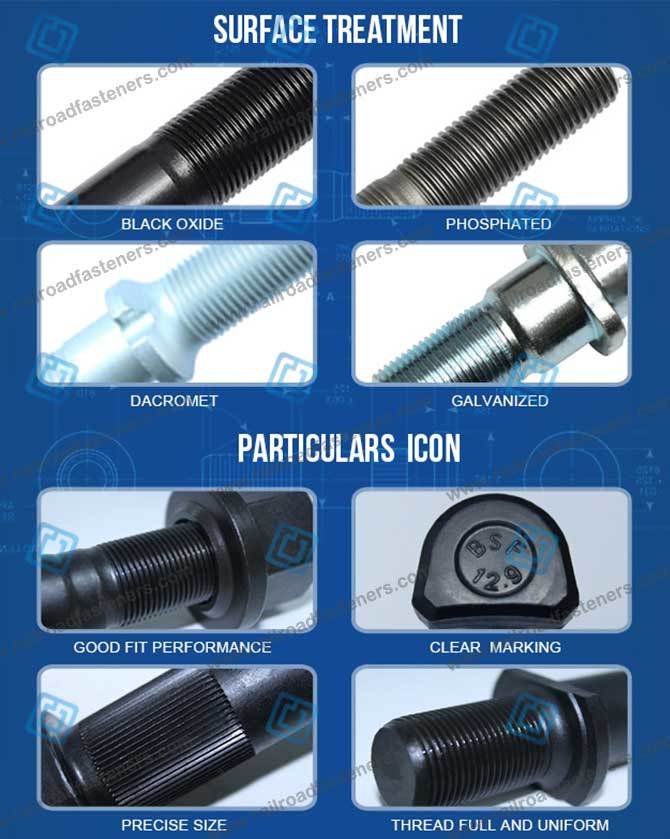

- Besides the common rail bolt, there are some special rail bolts. Such as the T-bolt, the shape is special. When you use it, you should cut the head and the bottom. The fish bolt is used for rail joints, and the surface material has many types like plain, oxide black, zinc, and HDG. The fish bolt is used together with rail nuts and spring washers.
| Button head oval neck track bolt | Material: Carbon steel Grade: 8.8 10.9 Size: Dia. M5-M42 Surface: zinc plated |
| Diamond neck track bolt | Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 10.9 Standard: UIS864-2 Surface: plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing |
| Rail bolt NF F50-008 | Material: Q235, 35#, 45#,, 40Cr Grade: 4.6, 5.6, 8.8 10.9 Certificate:ISO9001:2008 Surface: plain (oiled), Oxide black, Zinc, HDG |
| Clip bolt with BSW thread | Material: Q235, 35#, 45#, 40Cr Grade: 4.6, 5.6, 8.8, 10.9 Certificate:ISO9001:2008 |
| Fish bolt used for rail joints (with railnuts and spring washers) | Material: Q235, 35#, 45#,, 40Cr , C45 Grade: 4.8, 8.8, 10.9 Size: 22×135, 24×135, 24×145 Surface: plain (oiled), Oxide black, Zinc, HDG Types: BS standard, R54 rail in Indonesia, AS1085.4-1999, Russian standard, AREMA standard, etc. |
| Clip bolt HS26 & HS32 | This type of bolt is used to connect base plates and rail clamps together with nuts and washers. Two types of clip bolts are available: with square neck or without neck. Standard: UIS864-2 Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 Standard: UIC, GB, BS, DIN and GOST or ISO, etc. Surface: Plain, black painting or upon customer requirement For rail types: M20 X 60 30Kg rail, M20 X 75 30Kg rail, M22 X 66 40Kg rail, M22 X 80 48Kg rail, etc. |
| Clamp bolt and inserted bolt for Russia | Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 Size: M22 ×75, M22 ×175 Surface: Plain, black painting or upon customer requirement |
| Anchor bolt | We produce rail anchor bolt for concrete sleeper rail fastenings or for crane rail fastening systems. Material: Q235 Grade: 4.6, 5.6, 8.8 Surface: Plain, black painting or upon customer requirement Type: L type,J type, I type, curve bolt, or the type by customers' drawings |
| T-bolt | Material: Q235, 45# Standard:GB37-88 Size: M5-48 Grade: 4.6, 5.6, 8.8, 10.6, 12.9 Surface: Natural or according to customers' requests |
| Special bolt | Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 Surface: Plain, black painting or upon customer requirement |
| Tunnel bolt | Type :available by customers drawings and samples . Surface: plain (oil ) black.zin .HDG etc Class:4.6.4.8.8.8.10.9. Types: Square flange bolts with round thread, special curve bolt, spear bolts with special pitches, etc. |
If you are interested in our products or have any questions, please feel free to contact us! We are always at your service!
