SKL14 rail clip

The SKL14 rail clip (Vossloh SKL14 Rail Clip) is also known as SKL14 Tension Clamp, SKL14 Elastic Clip, W14 Rail Clip, and simply "W Clip" for its W-shape). SKL14 rail clips are used to fasten the rails to the concrete sleepers. They are widely applied to heavy-load and high-speed railway fastening systems.

We have 6 rail clip production lines, with 4 being intelligent ones. They can realize automatic feeding, uniform heating, and rapid heating. We are professional and experienced railway clip manufacturers. We can produce various SKL clips for your railway projects, and we inspect every step of our production process, ensuring our products have consistent dimensions and reliable quality. If you have any requests, please get in touch with us.

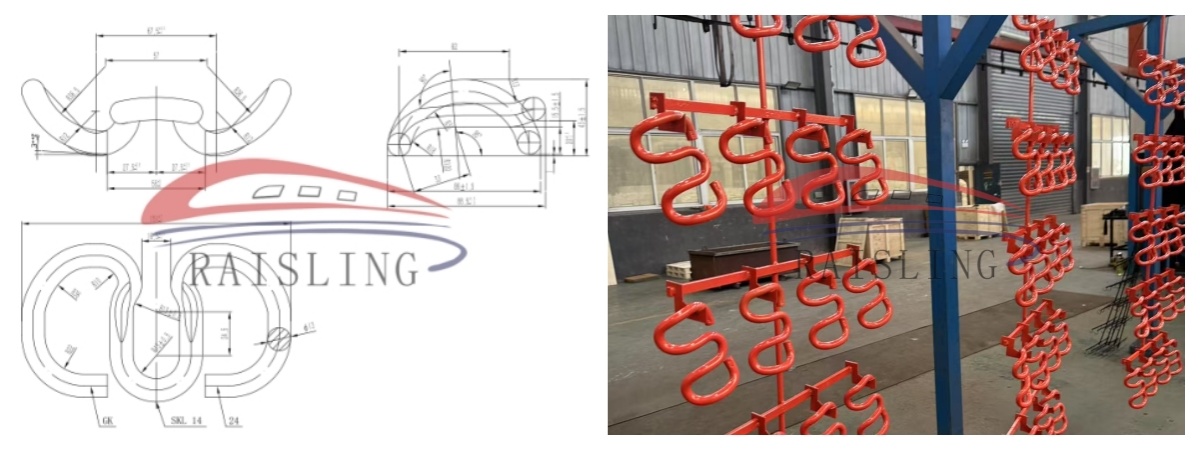

SKL14 rail clip specification

SKL14 rail clip technical requirements

• End-product surface: It is not allowed to have defects, peeling, corrosion, notches or cracks on the end-product surface.
• The rail clip surface shall have no metal rolling defects, and it shall conform to the requirements in the normative documents applicable to such metal rolling.
• Deformation: For the rail clip, the depth of depressions formed during bending and stamping shall not exceed 4% of its diameter, and the degree of diameter variation at the bending and marking positions shall not exceed 6%.
• The rail clip shall have a hardness of 43HRC～46HRC.
• Clamping Force: The clamping force of the rail clip shall not be less than 9KN when standard installation force is applied.
• Rail Clip Fatigue Property: 15HZ frequency, +0.5, -1.3mm amplitude, 13mm offset. It shall not break after 3 million cycles, and its deformation shall be no more than 2mm.

SKL14 rail clip fastening system

We are specialized in manufacturing SKL14 rail clips for the SKL14 rail clip fastening system. These clips and other rail fasteners like Screw Spikes, Angle Plates, Plastic Dowels and Rail Pads to create the full fastening system.

Professional and reliable SKL14 rail clip supplier

As a professional and reliable manufacturer of rail clips, we mainly produce various types of rail clips, such as Type A, Type B, Type 1, P43, metro, Russian rail clips, and more, with an annual output of 15,000 tons. We strictly control product manufacturing process, Our products have won customers' praise and trust, and are sold to more than ten countries including the United States, Russia, Finland, the United Kingdom, India, Kazakhstan and more.

SKL14 rail clip workshop

We have six rail clip automatic production lines. They can realize automatic feeding, uniform  heating, and fast heating, It also has the advantages of good quality stability and high production efficiency.

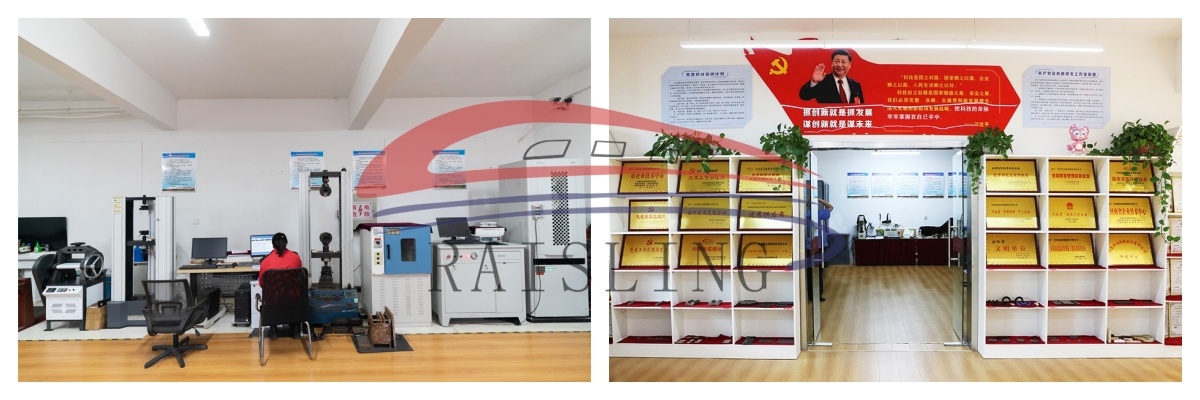

SKL14 rail clip quality control

We are professional manufacturers of railway products, emphasizing quality inspection and management. The railway products that we manufactured have passed the inspection of the "National Railway Product Quality Supervision and Inspection Center" (an authoritative railway department in China). We also hold the qualification for participating in large and medium-sized railway construction projects in China.

Our Certificates

Additionally, we have passed the CRCC certification (issued by the Ministry of Railways), work secrecy certification, and ISO 9001:2008 Quality Management System certification. We apply a strict production process to our products, including self-inspection, dedicated inspection, mutual inspection, and random inspection. We ensure each elastic bar product from our company is quality-qualified.
